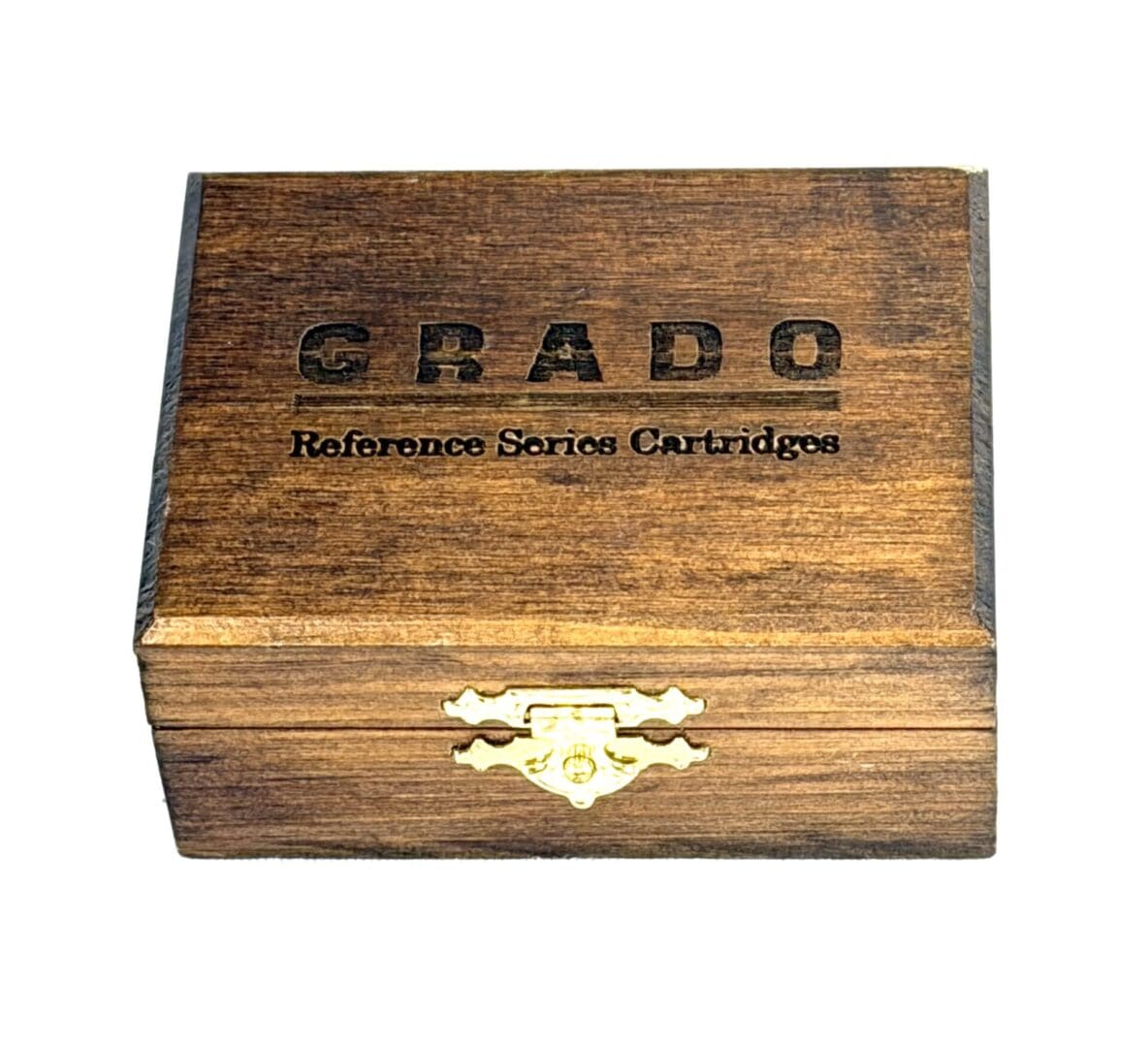

Grado Reference Cartridge Box
Grado "The Reference" Cartridge - Image 2

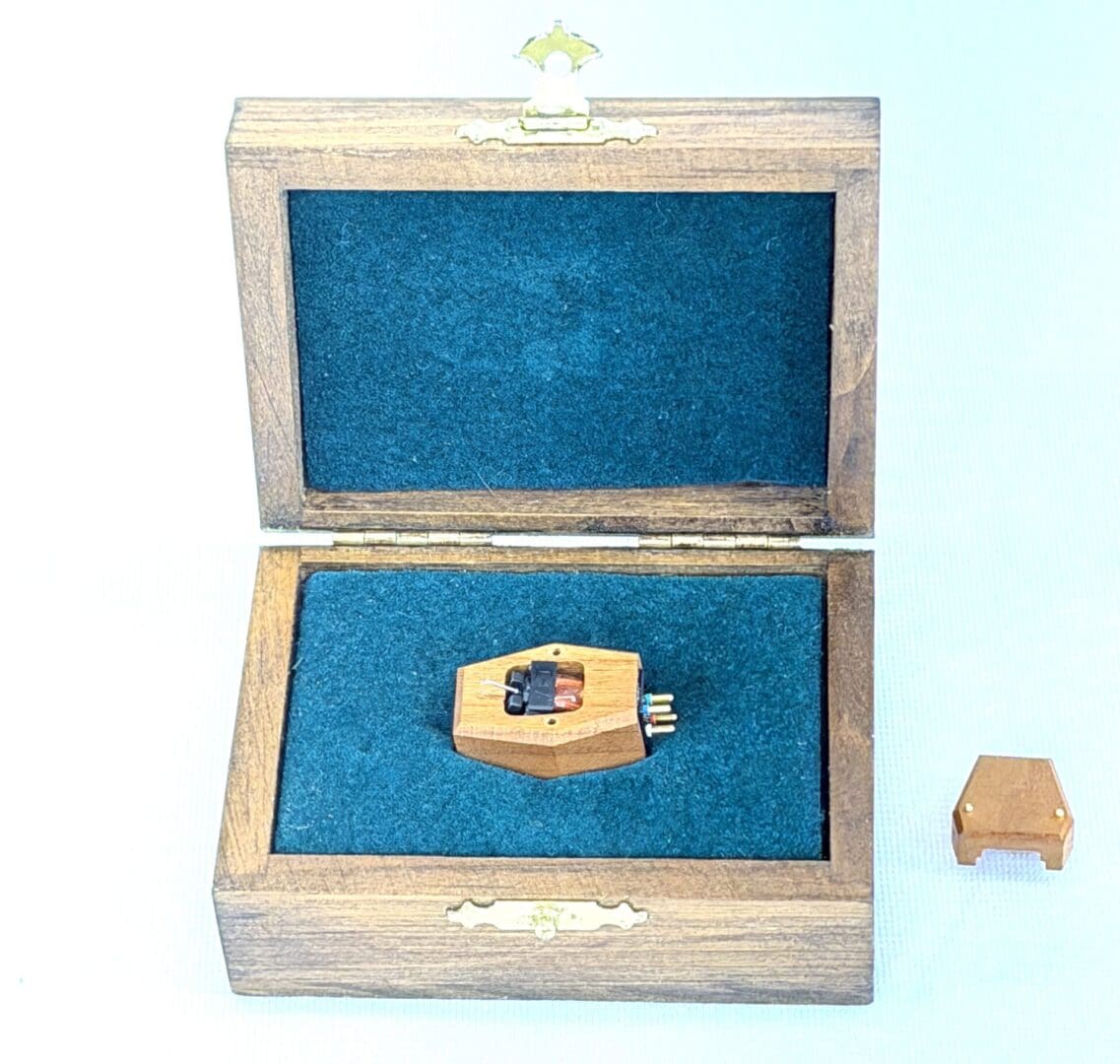

Grado Reference Cartridge box without cover
Grado Reference Cartridge new cantilever and diamond
Grado "The Reference" Cartridge - Image 5

Grado “The Reference” Cartridge

Original price was: $1,200.00.Current price is: $600.00.

(RS) Series Wooden Body, high output, dynamic, detailed, transparent, tantalizing.

Type: Demo with NEW cantilever and diamond from VAS.

Condition: 10/10 — like new.

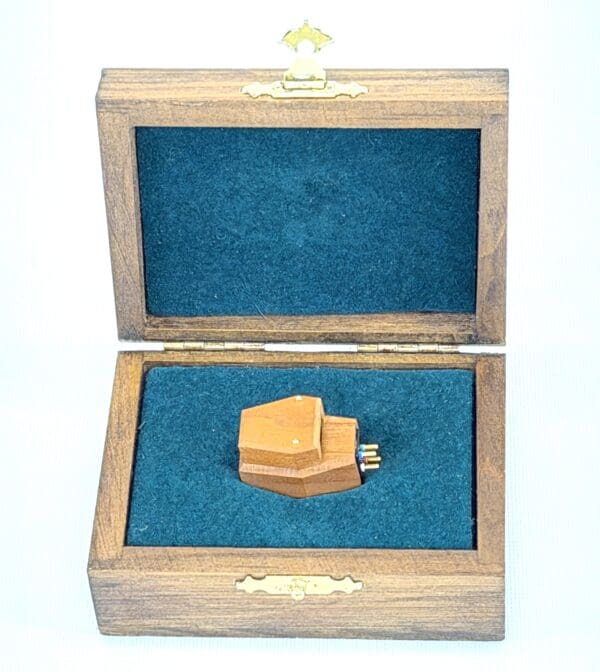

Includes: Wood Box and cover.

Website Link



Please Fill Out the Form Below

This field is for validation purposes and should be left unchanged.

Ask About This Item

Product Description

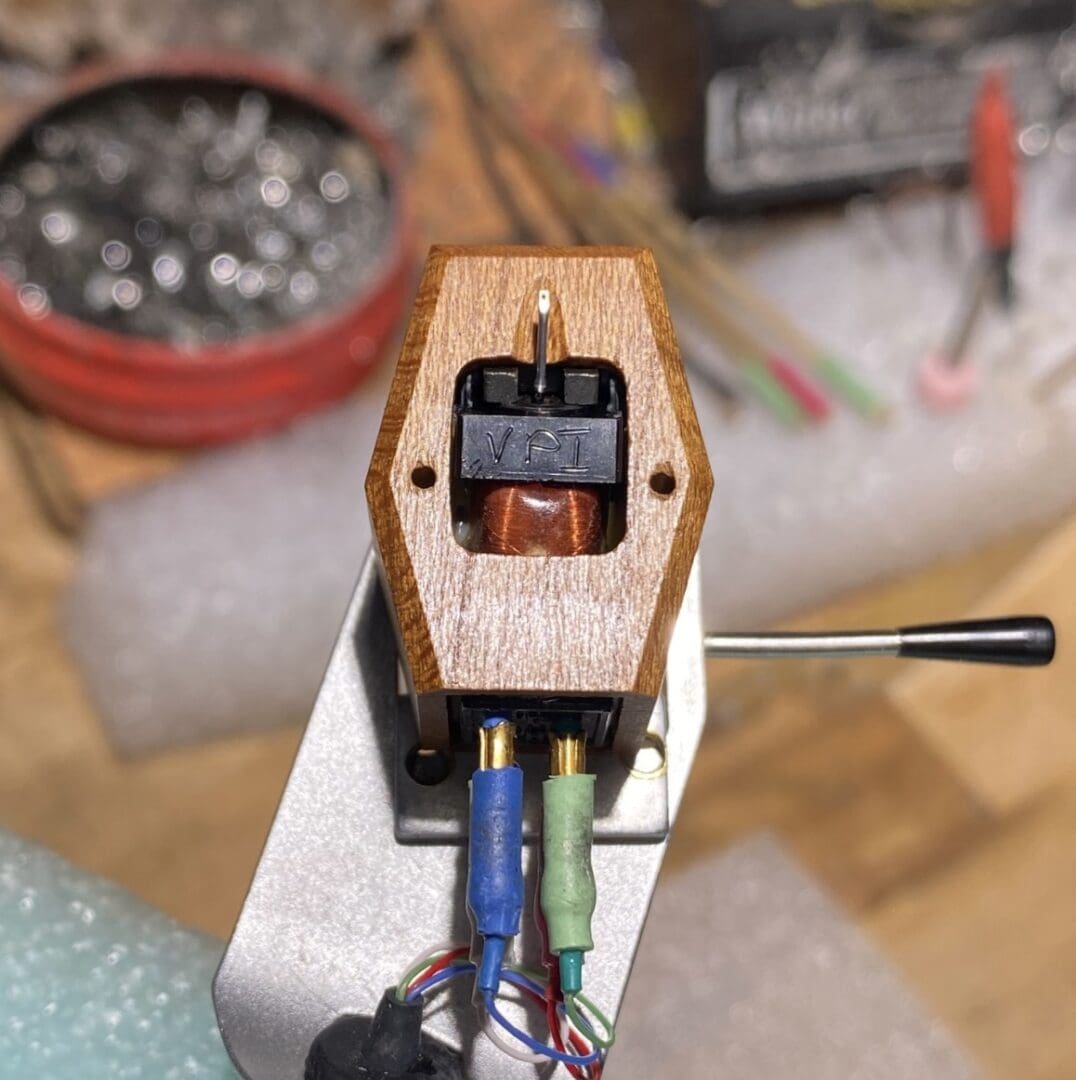

NEW Cantilever and Diamond just installed and set up by:

VAS Audio

77 Cliffwood Ave,Suite: 3B

Cliffwood, NJ 07721

Tele# 1-732-888-3288 Steve Leun

the Reference2 high‑output moving‑iron cartridge from the Wood/Reference series.

Core electrical specs

  • Principle: Moving‑iron (Grado flux‑bridger type) design.

  • Output voltage: 4.8 mV at 5 cm/s, 45° (high‑output version).

  • Recommended load: 47 kΩ (standard moving‑magnet phono input).

  • Inductance: 40 mH.

  • DC resistance: 600 Ω.

  • Capacitive loading: Specified as not sensitive to capacitive load.

Mechanical / tracking specs

  • Stylus: Grado “true ellipsoid” diamond profile, factory‑mounted (non‑user‑replaceable).

  • Cantilever: Five‑piece OTL (optimized transmission line) design with reduced effective tip mass.

  • Recommended tracking force: 1.5–1.9 g (typical setup target 1.6–1.8 g).

  • Cartridge weight: 10 g.

Frequency / separation performance

  • Controlled frequency response: 10 Hz – 60 kHz.

  • Channel separation: Average 40 dB from 10–30 kHz.

Body / construction

  • Body material: Jarrah wood (dense Australian hardwood) for added rigidity and damping.

  • Mount: Standard 1/2‑inch mount.​
