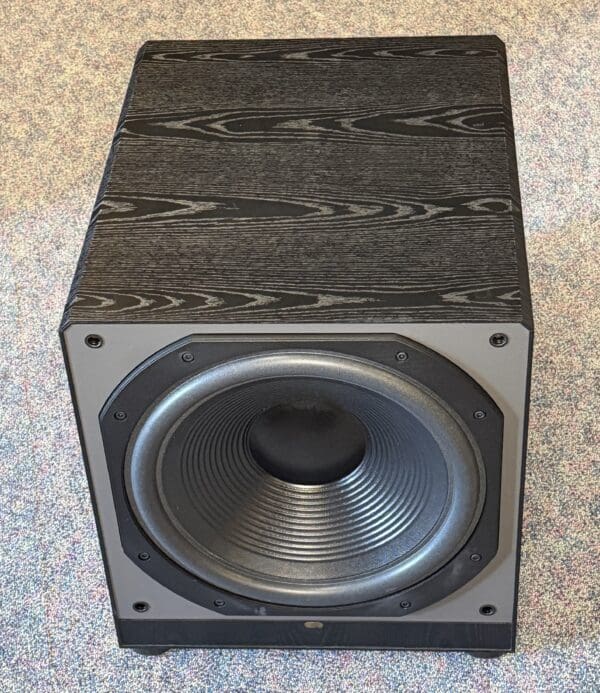

Paradigm Servo 15a subwoofer

Product Description

Loud, clean and taut bass — “can deliver 20Hz bass at levels in excess of 100dB”; external crossover is very transparent.

Specifications:

● Sealed Enclosure, Servo-Feedback.
● Driver: 15″; Polypropylene Cone, 3″ Voice Coil, 29 Pound Magnet Structure.
● Amplifier: 1200 Watts RMS; Class D.
● FR: 20 Hz – 150 Hz.
● Crossover: 35 Hz – 150 Hz.
● Variable Phase Control.
● RCA and XLR Inputs.
● Dimensions: HWD  20.2 x 18.2 x 21.5”.
● Weight: 114 Pounds.

– Off/On/Auto (3-way toggle switch)
– 12V Trigger (requires Off setting on the 3-way toggle)
– Low Level RCA Input
– Low Level XLR Balanced Input
– Low Pass Filter (35 Hz – 150 Hz continuously variable)
– High Pass Filter (est. 22 Hz, 1st order)
– Gain/Volume
– Phase Control (0-180 degrees continuously variable)
– Bass Contour (centered at 60 Hz, 0-6 dB)
– Soft Clipping, Thermal, and Electrical Short Protection
– Closed Loop Servo Feedback Correction
– Detachable Power Cord

Design: Single-driver, Closed-Loop Servo system; sealed enclosure, built-in power amplifier
Amplifier Distortion: Less than 0.005% distortion
Amplifier S/N Ratio: Better than -120 dB
Bass Driver: 380-mm (15″) KRC™ Kevlar® Reinforced Composite cone, 50-mm (2″) Bifilar 2+2-layer voice coil, Aluminium / Nomex® former.
Low Frequency Extension: 14 Hz (DIN) *
Frequency Response: ±2dB from 17Hz–150Hz
Total Harmonic Distortion: Less than 0.3%
Line Level Input: From Sub-Out / LFE-Out of receiver, processor or Paradigm® X-Series unit
Internal Volume: 97 L / 3.40 cu ft
